Lesson 7b: Visualising Geospatial Point Data

Author

Victoria Neo

Published

February 28, 2024

Modified

February 28, 2024

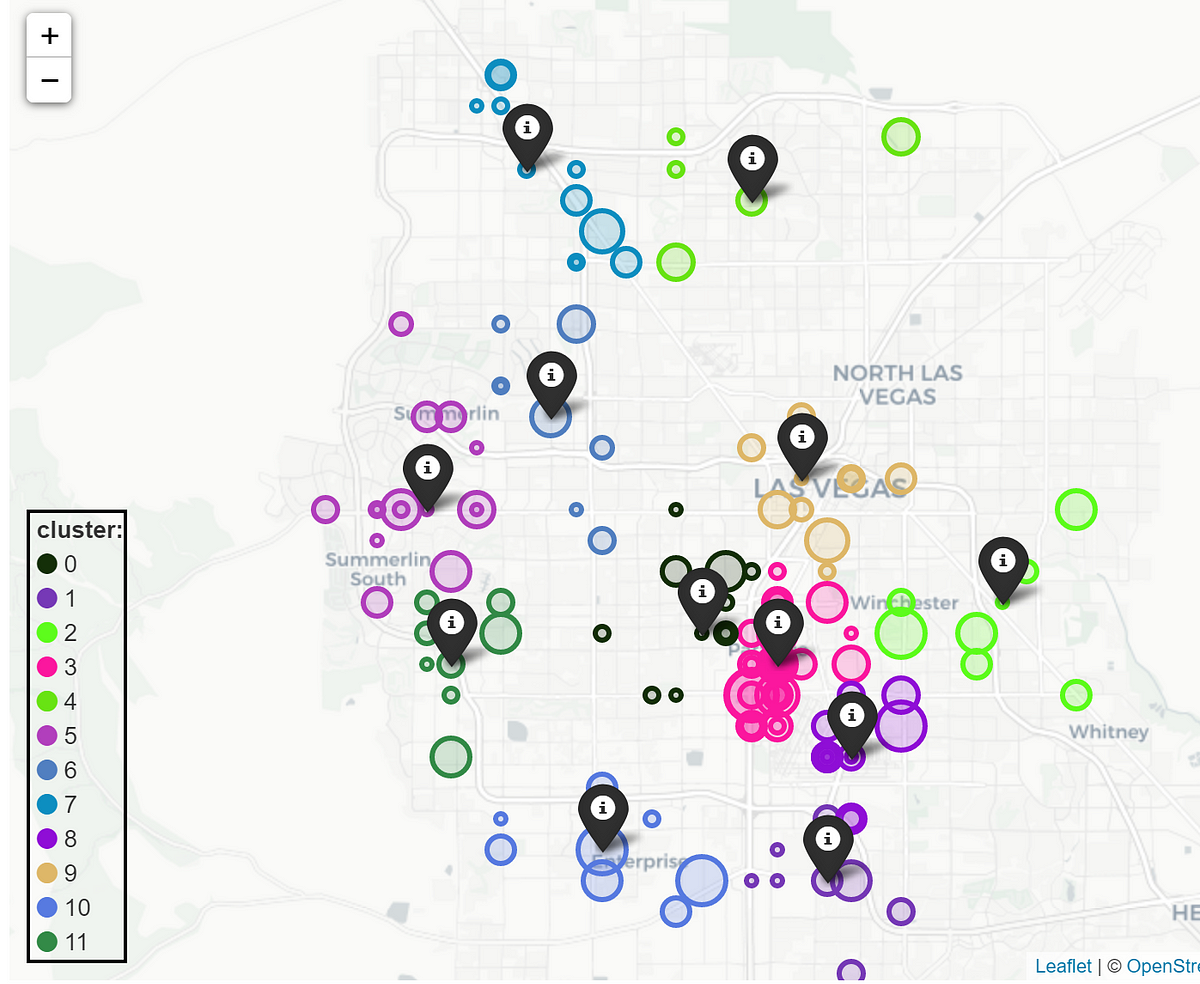

*Taken from* **Clustering Geospatial Data**

1 Overview

Proportional symbol maps (also known as graduate symbol maps) are a class of maps that use the visual variable of size to represent differences in the magnitude of a discrete, abruptly changing phenomenon, e.g. counts of people. Like choropleth maps, you can create classed or unclassed versions of these maps. The classed ones are known as range-graded or graduated symbols, and the unclassed are called proportional symbols, where the area of the symbols are proportional to the values of the attribute being mapped. In this hands-on exercise, you will learn how to create a proportional symbol map showing the number of wins by Singapore Pools’ outlets using an R package called tmap.

1.1 Learning outcomes

By the end of this hands-on exercise, you will acquire the following skills by using appropriate R packages:

To import an aspatial data file into R.
To convert it into simple point feature data frame and at the same time, to assign an appropriate projection reference to the newly create simple point feature data frame.
To plot interactive proportional symbol maps.

2 Getting Started

2.1 Installing and loading the required libraries

code block

pacman::p_load(sf, tmap, tidyverse)

2.2 Data

The data set use for this hands-on exercise is called SGPools_svy21. The data is in csv file format.

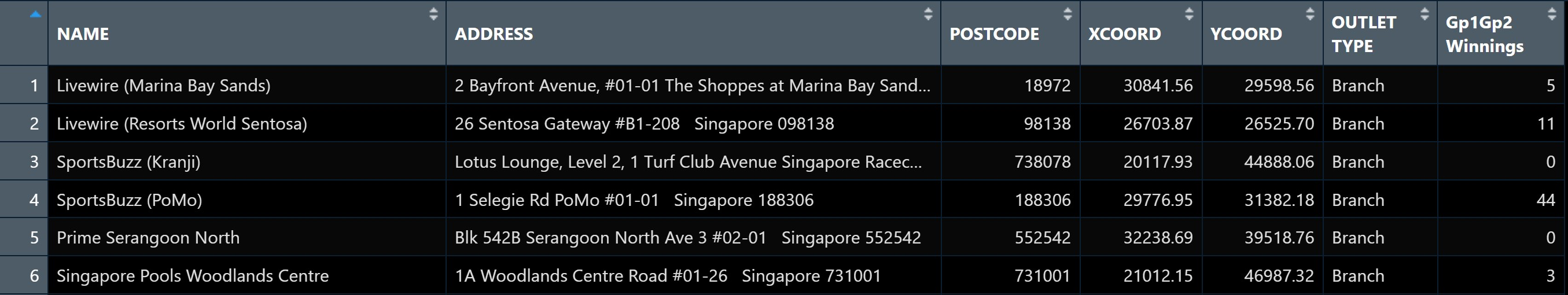

Figure below shows the first 15 records of SGPools_svy21.csv. It consists of seven columns. The XCOORD and YCOORD columns are the x-coordinates and y-coordinates of SingPools outlets and branches. They are in Singapore SVY21 Projected Coordinates System.

2.2.1 Importing Data

The code chunk below uses read_csv() function of readr package to import SGPools_svy21.csv into R as a tibble data frame called sgpools.

code block

sgpools <- read_csv("data/aspatial/SGPools_svy21.csv")

After importing the data file into R, it is important for us to examine if the data file has been imported correctly.

The code chunk below shows list() is used to do the job.

code block

list(sgpools)

[[1]]
# A tibble: 306 × 7
   NAME           ADDRESS POSTCODE XCOORD YCOORD `OUTLET TYPE` `Gp1Gp2 Winnings`
   <chr>          <chr>      <dbl>  <dbl>  <dbl> <chr>                     <dbl>
 1 Livewire (Mar… 2 Bayf…    18972 30842. 29599. Branch                        5
 2 Livewire (Res… 26 Sen…    98138 26704. 26526. Branch                       11
 3 SportsBuzz (K… Lotus …   738078 20118. 44888. Branch                        0
 4 SportsBuzz (P… 1 Sele…   188306 29777. 31382. Branch                       44
 5 Prime Serango… Blk 54…   552542 32239. 39519. Branch                        0
 6 Singapore Poo… 1A Woo…   731001 21012. 46987. Branch                        3
 7 Singapore Poo… Blk 64…   370064 33990. 34356. Branch                       17
 8 Singapore Poo… Blk 88…   370088 33847. 33976. Branch                       16
 9 Singapore Poo… Blk 30…   540308 33910. 41275. Branch                       21
10 Singapore Poo… Blk 20…   560202 29246. 38943. Branch                       25
# ℹ 296 more rows

Notice that the sgpools data in tibble data frame and not the common R data frame.

2.2.2 Creating a sf data frame from an aspatial data frame

The code chunk below converts sgpools data frame into a simple feature data frame by using st_as_sf() of sf packages.

code block

sgpools_sf <- st_as_sf(sgpools,
                       coords = c("XCOORD", "YCOORD"),
                       crs= 3414)

What did Prof Kam say?

Things to learn from the code chunk above

The coords argument requires you to provide the column name of the x-coordinates first then followed by the column name of the y-coordinates.
The crs argument required you to provide the coordinates system in epsg format. EPSG: 3414 is Singapore SVY21 Projected Coordinate System. You can search for other country’s epsg code by refering to epsg.io.

Figure below shows the data table of sgpools_sf. Notice that a new column called geometry has been added into the data frame.

code block

list(sgpools_sf)

[[1]]
Simple feature collection with 306 features and 5 fields
Geometry type: POINT
Dimension:     XY
Bounding box:  xmin: 7844.194 ymin: 26525.7 xmax: 45176.57 ymax: 47987.13
Projected CRS: SVY21 / Singapore TM
# A tibble: 306 × 6
   NAME                         ADDRESS POSTCODE `OUTLET TYPE` `Gp1Gp2 Winnings`
 * <chr>                        <chr>      <dbl> <chr>                     <dbl>
 1 Livewire (Marina Bay Sands)  2 Bayf…    18972 Branch                        5
 2 Livewire (Resorts World Sen… 26 Sen…    98138 Branch                       11
 3 SportsBuzz (Kranji)          Lotus …   738078 Branch                        0
 4 SportsBuzz (PoMo)            1 Sele…   188306 Branch                       44
 5 Prime Serangoon North        Blk 54…   552542 Branch                        0
 6 Singapore Pools Woodlands C… 1A Woo…   731001 Branch                        3
 7 Singapore Pools 64 Circuit … Blk 64…   370064 Branch                       17
 8 Singapore Pools 88 Circuit … Blk 88…   370088 Branch                       16
 9 Singapore Pools Anchorvale … Blk 30…   540308 Branch                       21
10 Singapore Pools Ang Mo Kio … Blk 20…   560202 Branch                       25
# ℹ 296 more rows
# ℹ 1 more variable: geometry <POINT [m]>

The output shows that sgppols_sf is in point feature class. It’s epsg ID is 3414. The bbox provides information of the extend of the geospatial data.

3 Drawing Proportional Symbol Map

To create an interactive proportional symbol map in R, the view mode of tmap will be used.

The code churn below will turn on the interactive mode of tmap.

code block

tmap_mode("view")

3.1 It all started with an interactive point symbol map

The code chunks below are used to create an interactive point symbol map.

code block

tm_shape(sgpools_sf)+
tm_bubbles(col = "red",
           size = 1,
           border.col = "black",
           border.lwd = 1)

3.2 Let’s make it proportional

To draw a proportional symbol map, we need to assign a numerical variable to the size visual attribute. The code chunks below show that the variable Gp1Gp2Winnings is assigned to size visual attribute.

code block

tm_shape(sgpools_sf)+
tm_bubbles(col = "red",
           size = "Gp1Gp2 Winnings",
           border.col = "black",
           border.lwd = 1)

3.3 Let’s give it a different colour

code block

tm_shape(sgpools_sf)+
tm_bubbles(col = "OUTLET TYPE",
          size = "Gp1Gp2 Winnings",
          border.col = "black",
          border.lwd = 1)

3.4 Twin diagrams

An impressive and little-know feature of tmap’s view mode is that it also works with faceted plots. The argument sync in tm_facets() can be used in this case to produce multiple maps with synchronised zoom and pan settings.

code block

tm_shape(sgpools_sf) +
  tm_bubbles(col = "OUTLET TYPE",
          size = "Gp1Gp2 Winnings",
          border.col = "black",
          border.lwd = 1) +
  tm_facets(by= "OUTLET TYPE",
            nrow = 1,
            sync = TRUE)

4 End the session

Before you end the session, it is wiser to switch tmap’s Viewer back to plot mode by using the code chunk below.

code block

tmap_mode("plot")
